Clean Booth

Clean Booth

A clean booth (simple clean room) is a type of simple clean room that can be set up quickly and conveniently. It is available in various cleanliness classes and spatial configurations, and can be custom-designed and fabricated according to usage requirements. Therefore, its main features include easy operation, high flexibility, simple installation, short construction period, and mobility. Meanwhile, clean booths can be locally added to areas that require high cleanliness within a general-grade clean room to reduce costs.

Main Features

1. Modular Design: Easy installation, drastically shortening delivery lead times; suitable for small-area clean zone construction.

2. Upgradeable Performance: Modular structure enables easy purification grade upgrades, with strong expandability and high reuse value.

3. Cost-Effective: Larger internal usable space than ultra-clean workbenches; lower cost and faster construction than traditional cleanrooms, with no floor height restrictions.

4.  High Filtration Efficiency: Equipped with H14 HEPA filters, ensuring superior air purification effect.

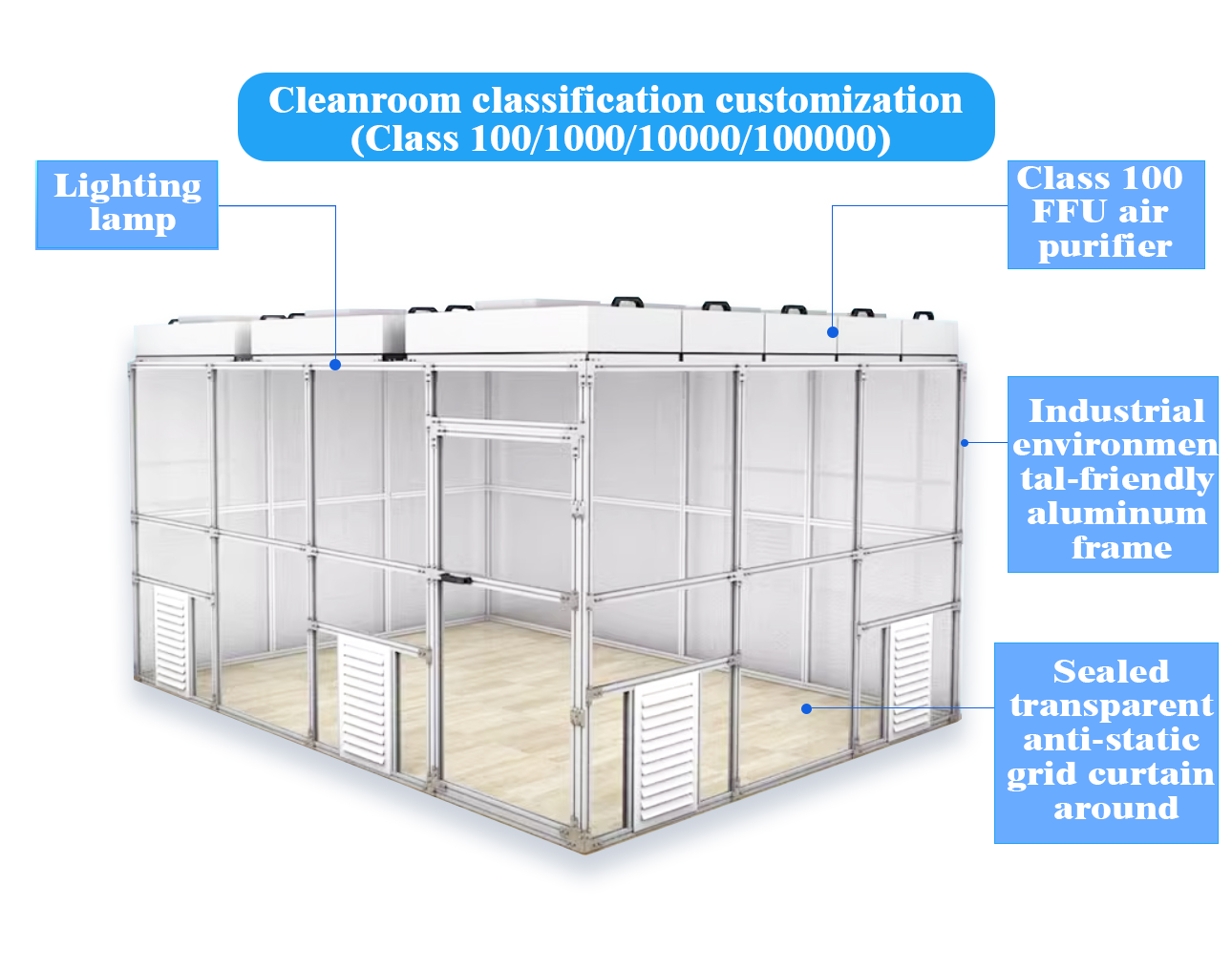

Main components

1. Frame：Stainless steel/iron square tube with spray coating – stable, aesthetic, rust & dust-free.

2. Anti-static Curtain：Premium anti-static performance, high transparency, flexible & anti-deformation, aging-resistant, dust-proof & static-dissipative.

3. Cleanroom Ceiling Panel：Cold-rolled steel with electrostatic spray – tailored for cleanroom environments.

4. Internal Lighting：Cleanroom-exclusive purification lamps – zero dust emission during operation.

5. FFU：Low-noise centrifugal fan (long lifespan, maintenance-free); rear-mounted HEPA filter (low initial resistance, high filtration efficiency, easy replacement).

6. Customization：Dimension customization available to meet client requirements.
