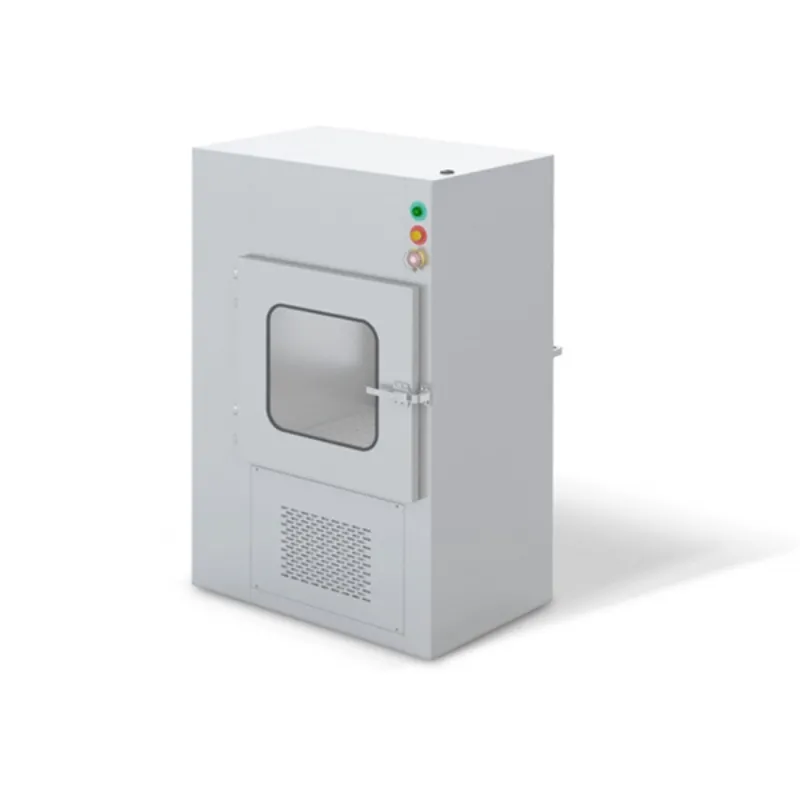

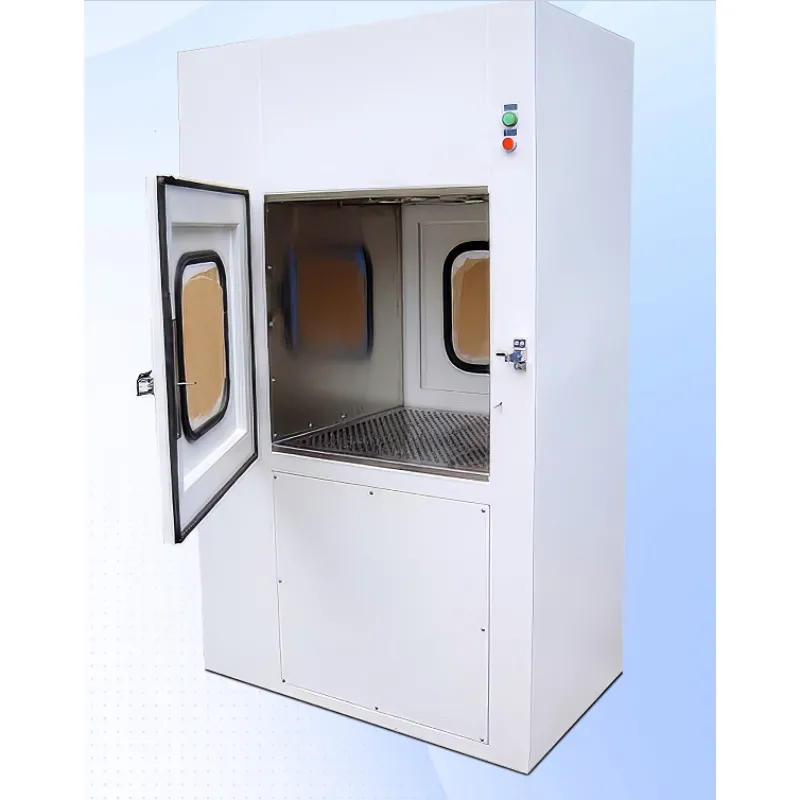

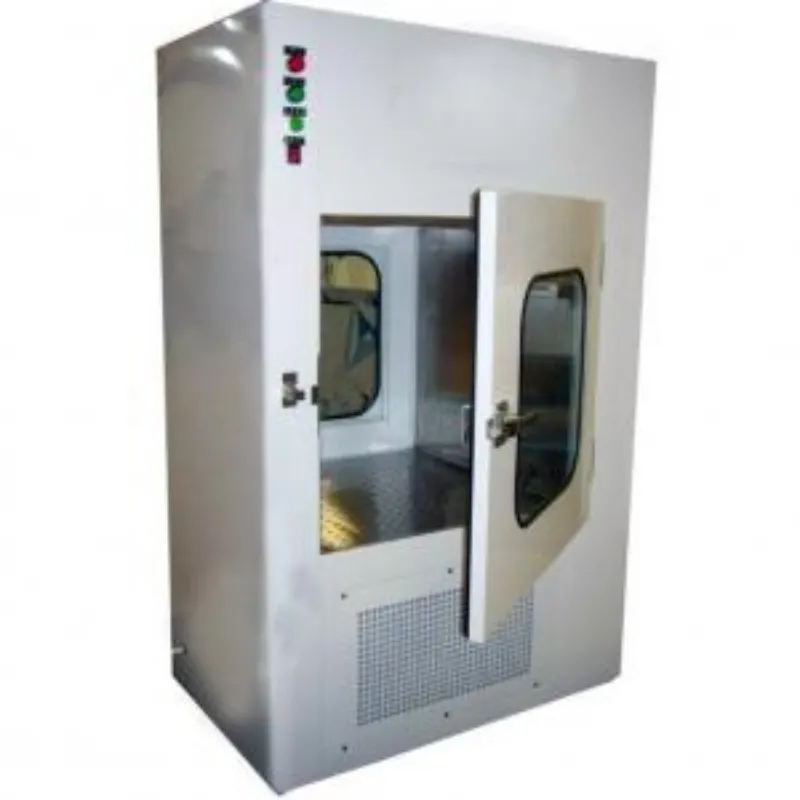

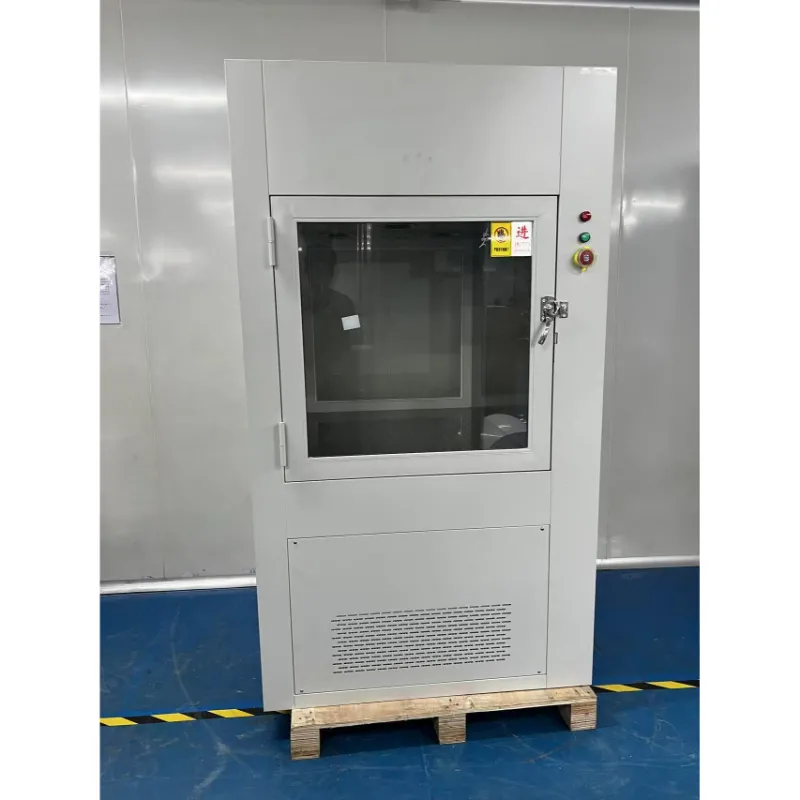

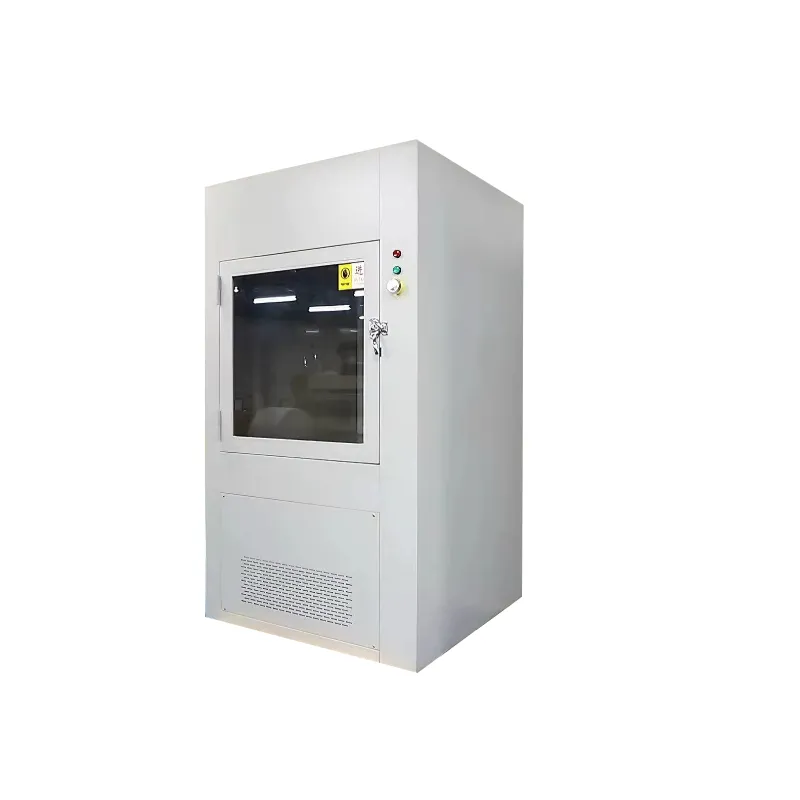

Air Shower Pass-Through Window

Usage: Designed based on air shower principle, used to remove dust particles via HEPA-filtered clean air during material transfer, reducing cross-contamination. Air shower time adjustable (1-60 minutes).

Application Industries: Material transfer in clean workshops of pharmaceuticals, food, electronics, etc., meeting QS, GMP and other certification requirements.

Inquire Now Next Product

Product Features

Working area made of sanded stainless steel, smooth and wear-resistant; outer cabinet materials optional cold-rolled steel, stainless steel SUS201, SUS304.

Equipped with mechanical or electronic interlock device to prevent both doors from opening simultaneously.

Special sealing strips ensure airtightness.

Optional configurations: intercom, UV germicidal lamp, sound and light alarm system.

Standard Dimension Parameters

Product Model	APB-600	APB-750	APB-800
Overall Dimensions (W×D×H mm)	900×680×1500	1050×830×1650	1100×880×1700
Internal Dimensions (W×D×H mm)	600×600×600	750×750×750	800×800×800
High - Efficiency Filter Dimensions (mm)	410×410×120
Filter Efficiency	99.99%@0.3μm
Fan Power Supply and Power	380V/50HZ/750W (1 unit)
Fan Air Volume (m³/h)	1200
Fan Noise (dB)	<78
Nozzles	4 个	≥4 个	≥4 个
Wind Speed at Nozzles(m/s)	18-22
Fluorescent Lamp Power (W)	20×1
Total Equipment Power Supply Parameters	380V/50HZ

Operation & Management

Management Key Points
Cleanliness Level Management	Managed according to the cleanliness level of the connected higher-level cleanroom (e.g., pass-through window between coding and filling rooms is managed per filling room standards).
Daily Cleaning	After work, cleanroom operators wipe the inner surfaces and turn on the UV sterilization lamp for 30 minutes.
Material In-and-Out Process	1. Separate material and personnel channels; 2. Raw materials are de-packaged/cleaned before entering through the pass-through window; 3. Adhere to "one door open at a time" principle; 4. Semi-finished products are sent to the outer temporary storage via the pass-through window; 5. Contaminated materials and waste are transported out through a dedicated pass-through window.
Cleaning and Disinfection Requirements	After material transfer, promptly clean the site and pass-through window, close both doors, and disinfect.

After-Sales Service

Establish user files and regularly track product quality and usage.

Provide free technical consultation and training to solve usage problems.

1-year warranty for normal use, free replacement of damaged parts (excluding vulnerable parts);For abnormal use or out of warranty, maintenance fees and component costs will be charged as appropriate.
