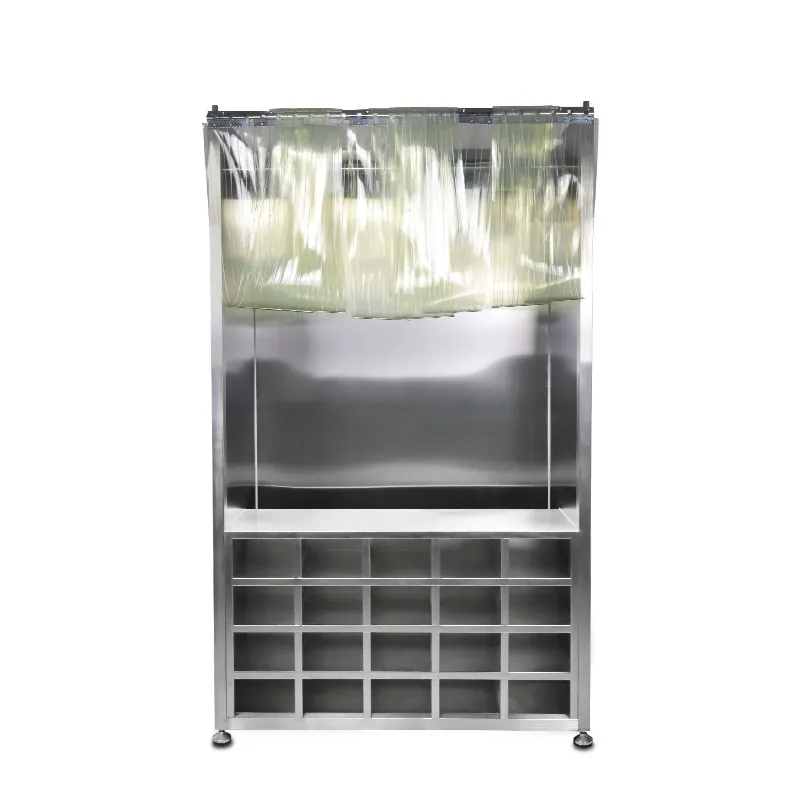

Cleanroom Dust-Free Wardrobe

Cleanroom wardrobe, dust-free wardrobe

Widely used in pharmaceuticals, preparations, electronics, precision instruments, meters, food, and other industries for storing dust-free clothing to maintain cleanliness and prevent secondary pollution.

Sliding glass door, antistatic curtain, ultraviolet sterilization lamp

Inquire Now Next Product

Product Features

German original EBM direct-drive centrifugal fan, low noise, maintenance-free, low vibration, long life, stable performance.

Compatible with various HEPA and ULPA filters, PTEE membrane filter saves over 30% energy.

Optional differential pressure gauge indicates HEPA filter blockage alarm for timely replacement.

Low noise, small vibration, stable wind speed; stainless steel structure, rail-mounted or sliding door, high-end appearance.

Each unit is scanned and tested with a dust particle counter according to US Federal Standard 209E before delivery to ensure quality.

Structural Components

FFU Size	1175×575×255mm, cabinet made of 201# mirror stainless steel (0.8mm)
Fan	Inner rotor motor + plastic impeller, 1 unit in total
Filter	Compatible with 1170×570×69mm HEPA filter, filtration efficiency H13
Bracket	Welded with 201# 50×50×1.0mm mirror stainless steel square tubes

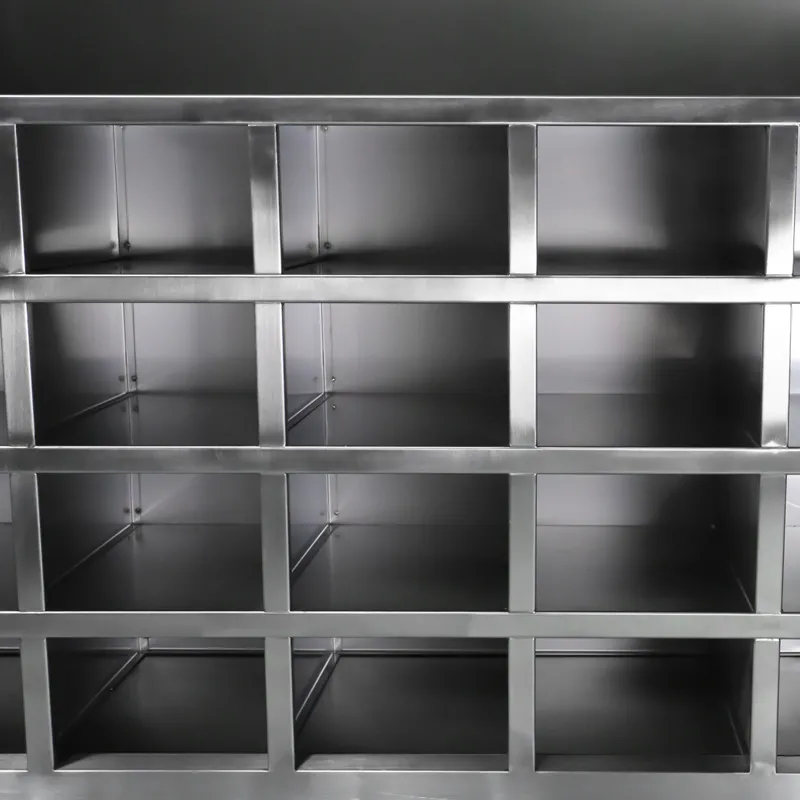

Bottom Plate/Shoe Rack/Carrier Frame	Bent from 201# mirror stainless steel plate
Side/Back Sealing	0.3mm transparent antistatic grid curtain, fixed with stainless steel strips

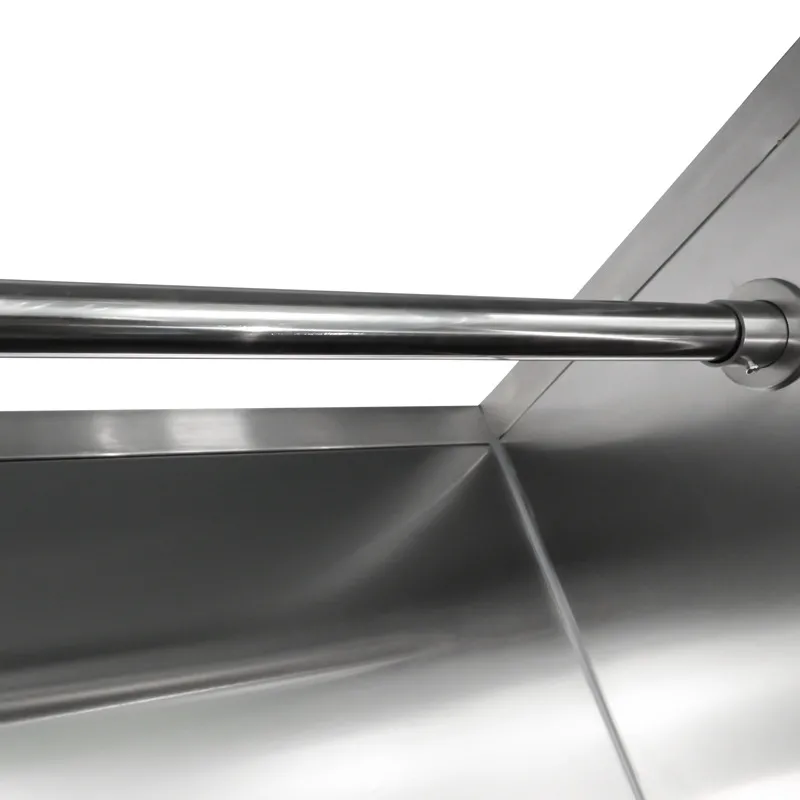

Clothes Hanging Rod	201# mirror stainless steel material
Control Panel	Controls FFU (three-speed adjustment)
Support and Movement	4 x 2-inch casters (flat type, with brakes)
Front Door	Aluminum alloy sliding door structure, beautiful and elegant appearance

Standard Specifications

Specification Model	YG-2110
Frame Material	Stainless steel square tube, aluminum profile square tube, cold-rolled steel square tube
Overall Dimensions (Length×Width×Height)	2110×600×1600mm
Clean Dimensions (Length×Width×Height)	2030×560×1550mm
High-Efficiency Filter Dimensions	1170×570×69mm (main filter); 570×570×69mm (auxiliary filter)
High-Efficiency Filter Efficiency	99.999%@0.5μm
Air Volume	1200 m³/h
Wind Speed	Average 0.45±20% m/s
Number of Storable Clothes/Shoes	25-30 pieces/pairs
Number of High-Efficiency Filters	1 (main filter)
Noise	≤56 dB
Power Supply	220V, 50Hz
Power	120-170W
Customization Options	Dimensions, materials, etc. can be customized

Maintenance & Care

Maintenance Items
Cleaning Cycle	Regular shutdown for cleaning, recommended once every 1-2 weeks to prevent secondary pollution.
Filter Replacement	Test dust particle values every 8-12 months and replace HEPA filter if exceeding standards.
Precautions for Moving	Remove the upper purification equipment when moving, push from the side to prevent collision.

After-Sales Service

Establish user files and regularly track product quality and usage.

Provide free technical consultation and training to solve usage problems.

1-year warranty for normal use, free maintenance and replacement of damaged parts (excluding vulnerable parts);For abnormal use or out of warranty, maintenance fees and component costs will be charged as appropriate.
