Product Images

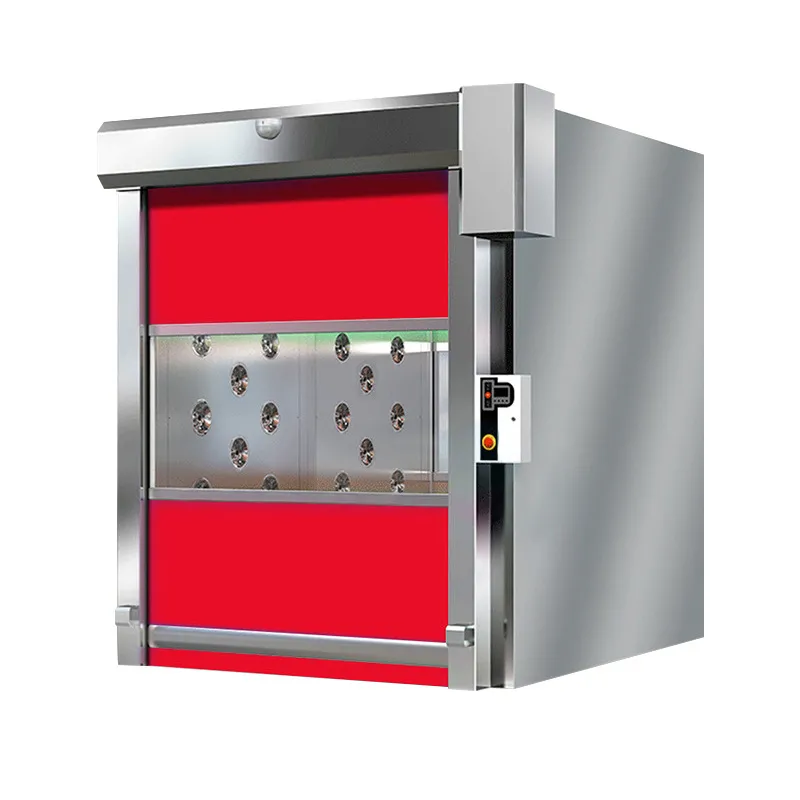

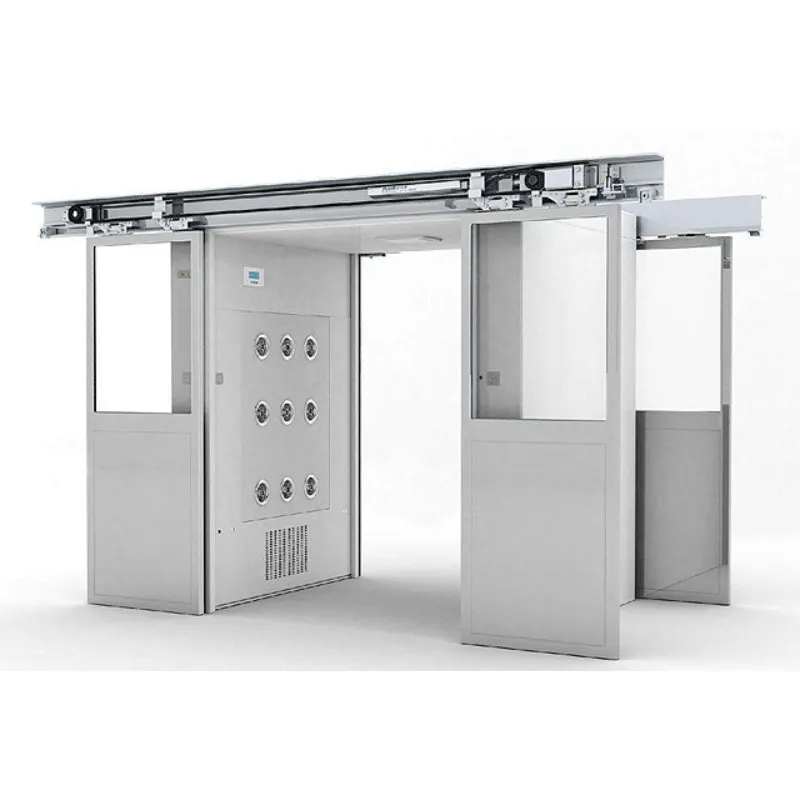

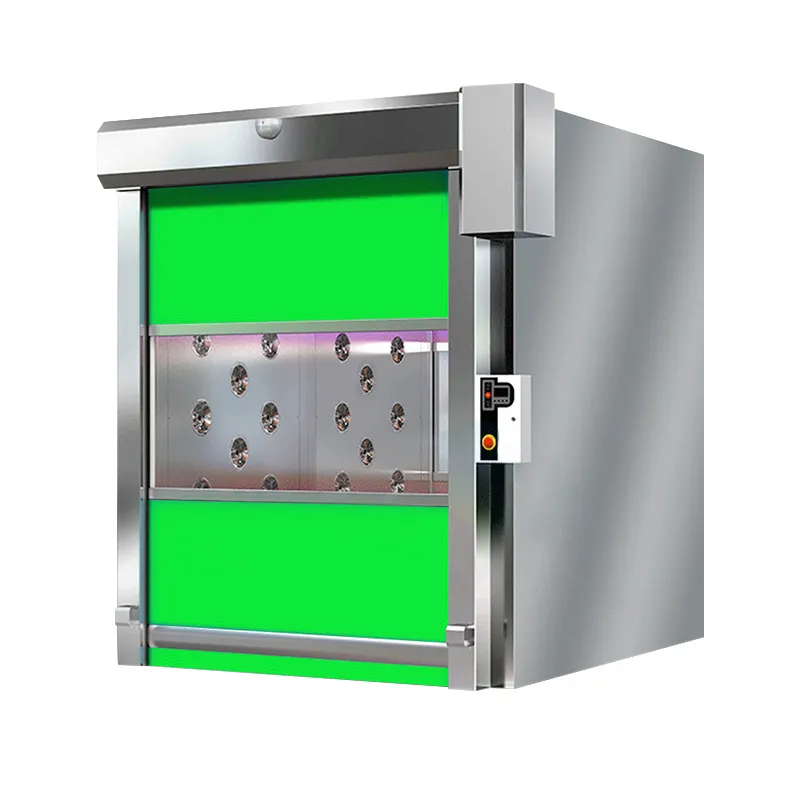

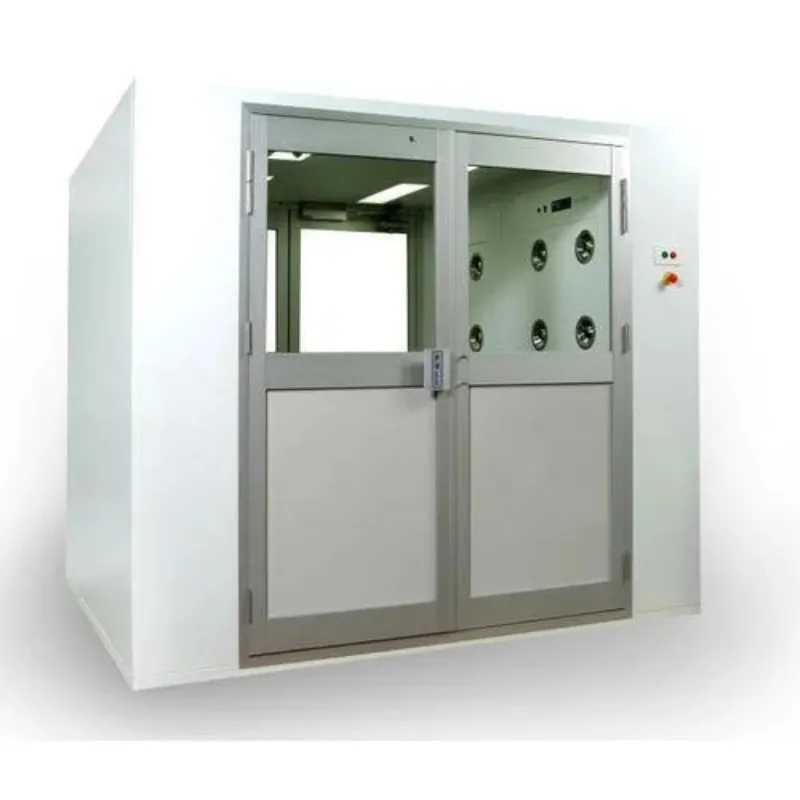

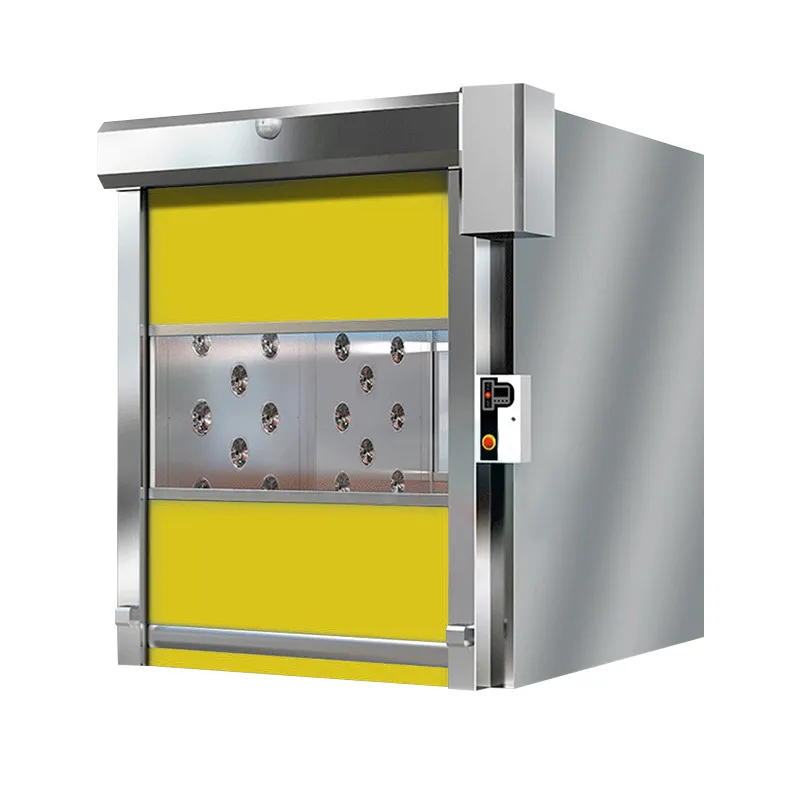

Goods Air Shower

Usage: Essential passage for goods entering/exiting cleanrooms, reducing contamination, acting as an airlock to maintain positive pressure, and serving as a buffer between different cleanroom classes to prevent cross-contamination.

Application Industries: Electronic processing, semiconductor, food, beverage, biological, medical industries, etc. Necessary equipment for QS and GMP certification.

Features: Two doors with electronic interlock, voice prompt system, rotatable nozzles for multi-angle spraying, primary and HEPA filters for air circulation.

Inquire Now Next Product

Product Features

Corner design more suitable for cleanroom principles.

Automatic system control operation, double doors with electronic interlock.

Made of integral cold-rolled steel plate, outer surface with electrostatic spraying.

Doors, bottom plate, and nozzles made of stainless steel, beautiful and elegant.

Soft key touch time relay, LED display for setting blowing time.

Primary and HEPA filter system with partitioned HEPA filters.

Nozzle wind speed over 25m/s, wind speed on body over 18m/s.

EVA sealing material with high tightness performance.

Imported electronic components with reliable performance.

Advanced noise reduction and silencing device system.

With stainless steel multi-angle adjustable nozzles, double volute external rotor high-air volume low-noise fan, surface wind speed >25m/s.

Modular assembly method, can be assembled into various blowing lengths as needed.

Standard Dimension Parameters

Specification Model	ZH-2000-2	ZH-2000-3	ZH-2000-4	ZH-2000-5
Overall Dimensions (W×L×H mm)	2000×2000×2050	2000×3000×2050	2300×2000×2050	2300×3000×2050
Air Shower Area Dimensions (W×L×H mm)	1200×1860×1980	1200×2860×1980	1500×1860×1980	1500×2860×1980
Fan Wind Speed(m/s)	18-22
Number of Stainless Steel Nozzles	24 pcs	36 pcs	24 pcs	36 pcs
Air Shower Cycle	Initially set to 10S at the factory, adjustable from 10 - 99S
Dimensions of High - Efficiency Filter(mm)	610×610×150
Efficiency of High - Efficiency Filter	99.99%@0.5μm
Cabinet Plate Material	1.2mm - thick cold - rolled steel plate, with surface electrostatic spraying treatment, matte/high - gloss white
Door Material and Bottom Plate Material	Stainless steel
Door Interlock Mode	Double doors locked during air shower; double doors interlocked at ordinary times, only one can be opened
Power Supply Voltage	380V, 50HZ, three - phase
Fan Power (W)	750		1500
Fluorescent Lamp Power (W)	40	60	40	60

Material & Usage

Main Materials:

Full stainless steel cabinet, stainless steel inner wall, UV germicidal lamp, static elimination device, automatic door device.

Safety Precautions:

1. Check phase loss or reverse connection if fan stops or wind speed is too low;
2. Doors are interlocked when powered on, locked during blowing;
3. Replace filters when wind speed decreases (primary filter cleaned/replaced every 6 months, HEPA filter replaced annually).

After-Sales Service

Establish user files and regularly track product quality and usage.

Provide free technical consultation and training to solve usage problems.

1-year warranty for normal use, free replacement of damaged parts (excluding vulnerable parts);For abnormal use or out of warranty, maintenance fees and component costs will be charged as appropriate.
