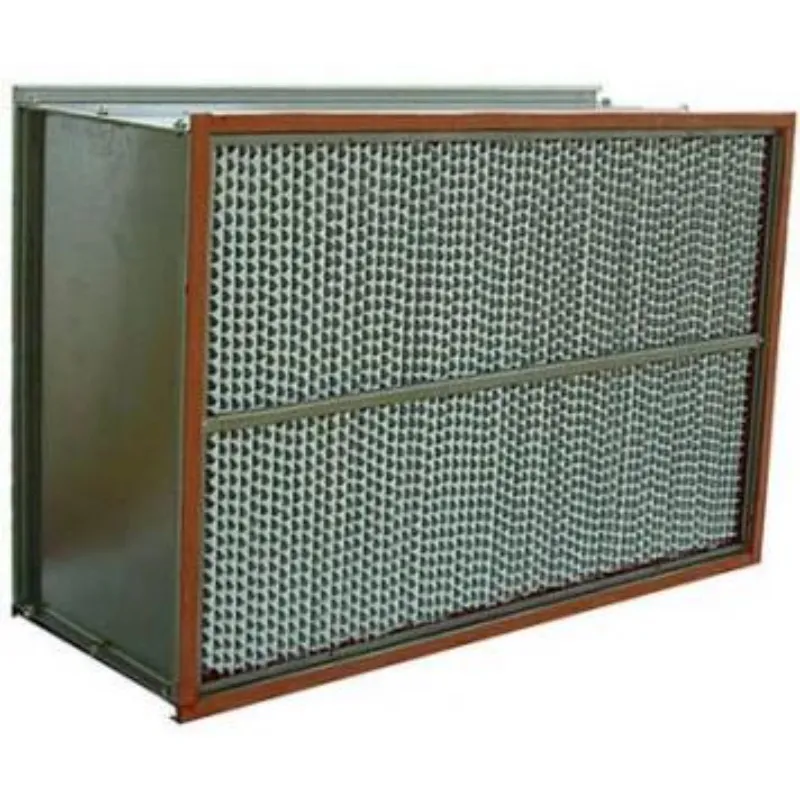

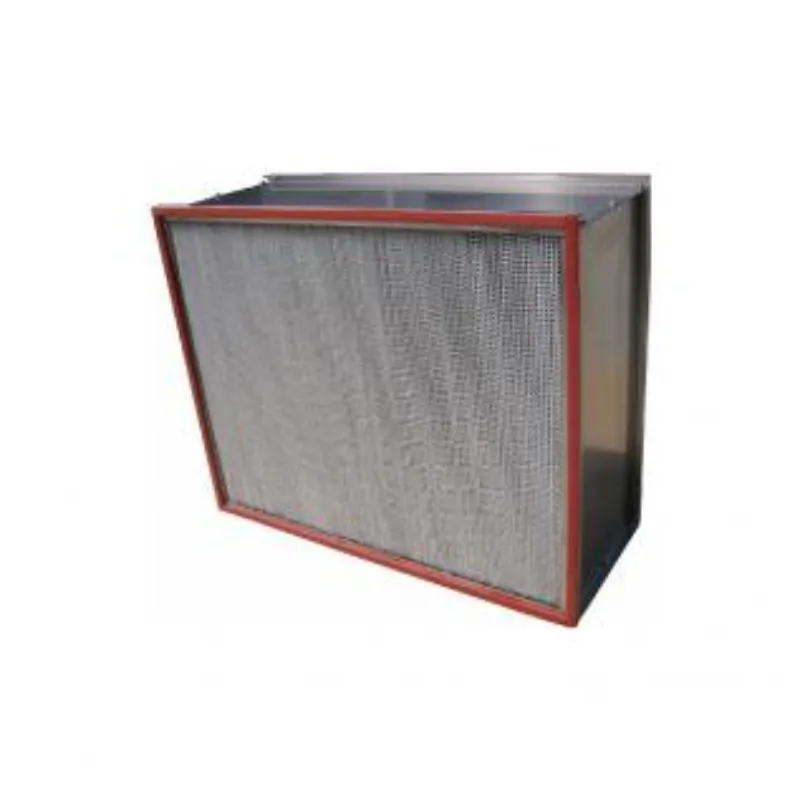

High - Temperature Resistant HEPA Filter

The high - temperature resistant HEPA filter uses a partitioned design. The corrugated partitions can precisely maintain the spacing between pleats. It mainly filters dust particles with a particle size of 0.3μm to 0.5μm. It features high efficiency and good temperature resistance. The glue used is imported temperature - resistant red glue. The maximum temperature resistance is 360℃. It has an overall beautiful appearance, is sturdy and durable, and is widely used in industries such as paint baking, precision electronics, liquid crystal panels, and semiconductors.

Inquire Now Next Product

Material Description

Production Type	Partitions high - temperature - resistant high - efficiency filter, high - temperature - resistant ultra - high - efficiency filter, etc.
Filter Material	HV H3 - H4 glass fiber filter paper, U15 - U17 American HV glass fiber filter paper
Frame Material	Stainless steel frame, aluminum profile frame, galvanized frame, wooden frame
Sealing Strip	Silicone board (250 - 280℃), glass fiber adhesive strip (300 - 600℃, commonly used in pharmaceutical factories without silicon)
Filtration Size	Customized according to customer's actual requirements

Standard Specification Parameters

Model No.	Cabinet Overall Dimensions (W×H×D)(mm)	Rated Air Volume(m³/h)	Filtration Area(m²)	Dust Holding Capacity(g)	Temperature Resistance	Filtration Efficiency
EKHHF - 001	484×484×120	450	4.3	250	≤100℃ \ ≤150℃ \ ≤220℃ \ ≤250℃ \ ≤320℃ \ ≤350℃	（≥99.95%@0.3μm) \ H14 (≥99.95%@0.3μm) \ U15 (≥99.995%@0.3μm) \ U16 (≥99.9995%@0.3μm) \ U17 (≥99.99995%@0.3μm）
EKHHF - 002	610×610×120	750	6.9	400
EKHHF - 003	915×610×120	1100	10.43	600
EKHHF - 004	484×484×150	600	5.85	350
EKHHF - 005	610×610×150	1000	9.39	550
EKHHF - 006	915×610×150	1500	14.19	850
EKHHF - 007	484×484×220	1000	9.22	550
EKHHF - 008	610×610×220	1500	14.8	850
EKHHF - 009	915×610×220	2500	22.35	1300
EKHHF - 010	1220×610×220	2400	22.35	1300

Feacture

Temperature Resistance Range and Characteristics	150℃ - 350℃, no smoking, no cracking
High - Temperature Gasket	Special high - temperature resistant gasket
Material	RPTEE material, no volatilization, corrosion - resistant, high viscosity, good resilience
Glue Parameters	Dow Corning high - temperature resistant glue from the US, viscosity: 100000Pa.s, instantaneous temperature resistance: 450℃, glue curing time: 72 hours, Shore hardness ≥42A
Cabinet	The cabinet is made of stainless steel, the side panels are made of 1.2mm thick 304 stainless steel, with eight - knife folding process, sturdy and durable, corrosion - resistant, no dust absorption
Product Positioning	The most stable high - temperature resistant high - efficiency filter, 100% increase in your product yield
Cleanliness Effect	100 Class 100 effect
Filter Material and Process	Using American HV filter material, manufactured into shape by professional equipment, no smoking and other adverse phenomena at high temperatures; using aluminum partitions for separation, effectively protecting the filter paper
Efficiency Range	99.99% - 99.999%H13 - H14
Technology and Resistance	Using German VTR technology, resistance reduced by 40%
