Intermediate - effect Bag Filters

The aluminum - framed bag filters use high - quality synthetic fiber non - woven fabric or imported glass fiber as filter materials. Each filter bag is strengthened and supported by double - layer U - shaped aluminum alloy, featuring a "V" - shaped filter bag structure. They can be used for intermediate filtration in air - conditioning systems to protect the next - level filters in the system and the system itself. In places where the requirements for air purification cleanliness are not strict, the air treated by the intermediate - effect filters can be directly supplied to users.

Inquire Now Next Product

Material Description

Filter Material	F5 - F9 chemical fiber non - woven fabric, F5 - F9 glass fiber cotton; "V" - type filter bag structure
Frame Material	Aluminum profile frame, galvanized frame, aluminum plate folded frame, stainless steel frame
Inner Frame	Aluminum profile pressure bar + galvanized inner frame bar
Filtration Efficiency	Atmospheric dust colorimetry average filtration efficiency: F5: 45%@1.0μm, F6: 65%@1.0μm, F7: 85%@1.0μm, F8: 90%@1.0μm, F9: 95%@1.0μm
Filtration Size	Customized according to customer's actual requirements

Standard Specification Parameters

Model	Overall Dimensions (W×H×D, Unit: mm)	Number of Bags	Rated Air Volume/Initial Resistance (m³/h&Pa)	Filtration Area (m²)	Efficiency Specification	Filter Bag Color
EKUF - 001	592×592×500	6	2550/45	4.4	F5	White
EKUF - 002	490×592×500	5	2100/45	3.6
EKUF - 003	287×592×500	3	1250/45	2.2
EKUF - 004	592×592×500	8	2550/40	5.6
EKUF - 005	490×592×500	6	2100/40	4.2
EKUF - 006	592×592×500	6	2550/50	4.4	F6	Light Green
EKUF - 007	490×592×500	5	2100/50	3.6
EKUF - 008	287×592×500	3	1250/50	2.2
EKUF - 009	592×592×500	8	2550/45	5.6
EKUF - 010	490×592×500	6	2100/45	4.2

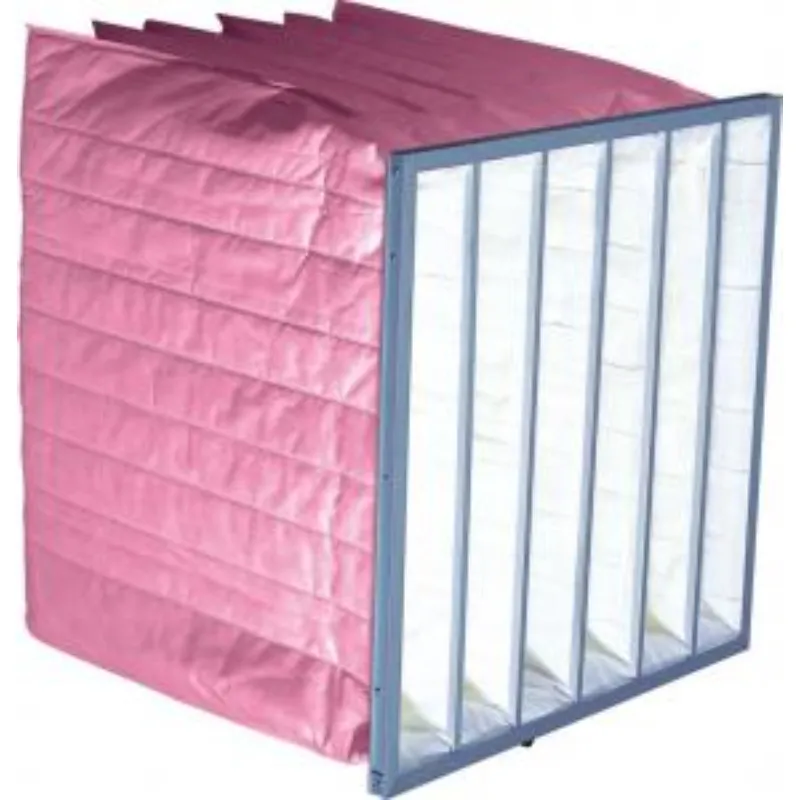

EKUF - 011	592×592×500	6	2550/58	4.4	F7	Pink
EKUF - 012	490×592×500	5	2100/58	3.6
EKUF - 013	287×592×500	3	1250/58	2.2
EKUF - 014	592×592×500	8	2550/52	5.6
EKUF - 015	490×592×500	6	2100/52	4.2

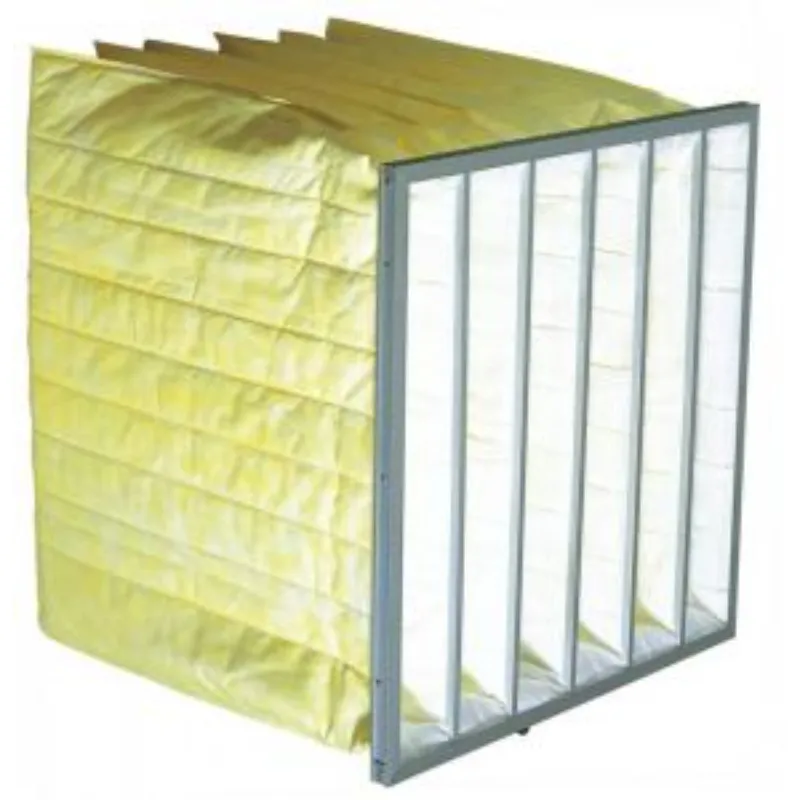

EKUF - 016	592×592×500	6	2550/67	4.4	F8	Dark Yellow or Light Yellow
EKUF - 017	490×592×500	5	2100/67	3.6
EKUF - 018	287×592×500	3	1250/67	2.2
EKUF - 019	592×592×500	8	2550/60	5.6
EKUF - 020	490×592×500	6	2100/60	4.2

Features of Intermediate - effect Bag Filters

1. Each filter bag is fixed with a metal strip. While increasing the strength of the filter bag, it can ensure the uniformity of the air flow and prevent the filter bag from rupturing due to the friction of wind cutting at high wind speeds.

2. Each filter bag has six baffles evenly distributed in the bag width to prevent the filter bags from over - expanding when subjected to wind pressure, mutually shielding and reducing the effective filtration area and efficiency. The edges of each filter bag are welded by ultrasonic waves, which have good air tightness and bonding strength, and no air leakage or rupture occurs.

3. The aluminum - framed bag filter uses high - quality synthetic fiber non - woven fabric as the filter material. Each filter bag is supported and reinforced with a double - layer U - shaped aluminum alloy, with a "V" - shaped filter bag structure.

4. The bag filter has a large effective filtration area, large dust holding capacity, low resistance, and large ventilation volume. The frame and support can be reused. When replacing the filter, only the filter bag needs to be replaced, which is convenient and fast, greatly reducing the operating cost.

5. It is used for intermediate filtration in air - conditioning systems to protect the next - level filter in the system and the system itself. In places where the requirement for air purification cleanliness is not strict, the air treated by the intermediate - effect filter can be directly supplied to users. It is widely used in electronics, pharmaceutical, medical, food and other industries.

Maintenance and Repair

1. According to the cleanliness of the environment, carry out regular replacement and cleaning (usually once every 3 - 6 months for intermediate - effect bag filters).

2. Regularly (usually once every two months), use a dust particle counter to measure the cleanliness of the clean area purified by this product. When the measured cleanliness does not meet the required cleanliness, find out the reasons (whether there is leakage, whether the high - efficiency filter has failed, etc.). If the intermediate - effect bag filter has failed, replace it with a new one.

3. The machine should be shut down when replacing the intermediate - effect bag filter.
