Liquid Tank Sealed Class 100 Laminar Flow Hood

Usage: Air purification equipment for local high-clean environment, forming vertical unidirectional flow through HEPA filter to meet Class 100 cleanliness.

Application Industries: Precision machinery, electronics, pharmaceuticals, food, fine chemicals, etc.

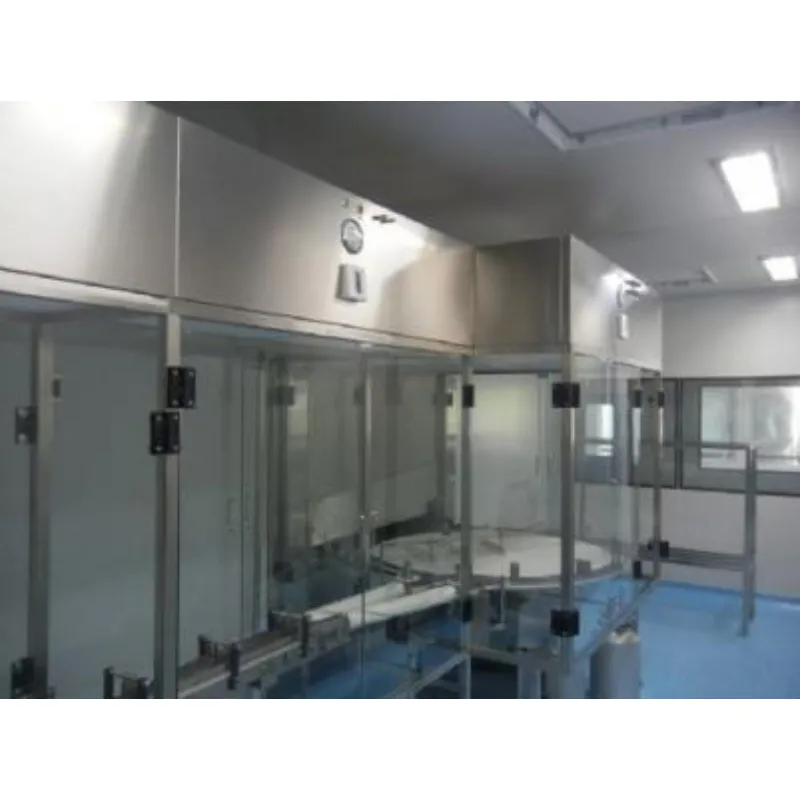

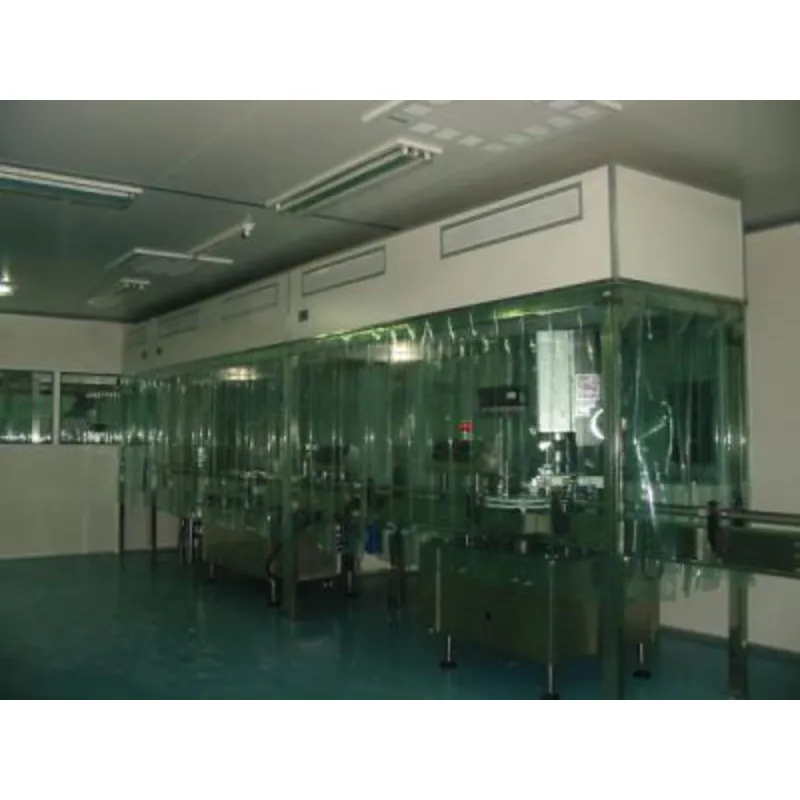

Installation Method: Can be suspended or floor-supported, used individually or in parallel to form a clean zone.

Inquire Now

Product Performance & Features

Made of imported eco-friendly aluminum-zinc coated steel, rust-proof, corrosion-resistant, light and sturdy.

Golden ratio design for aesthetic appeal and easy installation/maintenance.

Imported anti-static multi-blade turbine energy-saving fan, ultra-low noise, uniform air pressure, stable wind speed, service life >60,000 hours.

Three-speed fan control, electrical switch circuit, pre-set centralized control function.

Customizable (filter type, cabinet material, etc.), with stainless steel handles for easy handling.

3D modeling for optimized airflow, surface wind speed uniformity deviation <±10%.

Liquid seal design with built-in PAO dust generation and concentration sampling ports, meeting new GMP-E standards.

Lightweight and thin body for small-area application, optional accessories (differential pressure gauge, wind speed sensor, etc.).

Standard Dimension Parameters

Specification Model	Rated Air Volume (m/h)	Overall Dimensions (WLHmm)	Work Area Dimensions (WLHmm)	HEPA Specification (mm)	Power Supply	Power
LF-1200	1200	1360×740×850	1220×610	610×610×150 2pcs	AC 1Φ-220V/50Hz 1Φ-110V/60Hz	1.0KW
LF-1800	1800	1360×1040×850	1220×915	915×610×150 2pcs	AC 1Φ-220V/50Hz 1Φ-110V/60Hz	1.1KW
LF-2400	2400	1360×1360×850	1220×1220	1219×610×150 2pcs	AC 3Φ-380V/50Hz 3Φ-200V/60Hz	1.3KW
LF-4800	4800	3200×1040×600	2500×915	915×610×150 2pcs	AC 3Φ-380V/50Hz 3Φ-200V/60Hz	1.8KW

Maintenance & Cleaning Instructions

Check the hood surface and remove dust.

Wipe the front surface and surroundings with disinfectant before use.

Turn the fan voltage knob to "zero" and check fuses for integrity.

Turn on the main power switch, gradually adjust the knob to raise voltage until vertical airflow speed reaches ≥0.35m/s.

After use, return voltage to "zero" before turning off the power switch.

Remove the faceplate weekly, clean with WFI (Water for Injection), then wipe with 75% alcohol.

Replace HEPA filter when airflow speed cannot exceed 0.2m/s due to reduced air volume or pressure.

When replacing the filter, open the faceplate, loosen fixing bolts, replace the filter, tighten securely, and reinstall the faceplate.

After-Sales Service

Establish user files and regularly track product quality and usage.

Provide free technical consultation and training to solve usage problems.

1-year warranty for normal use, free maintenance and replacement of damaged parts (excluding vulnerable parts);For abnormal use or out of warranty, reasonable charges for maintenance and components.
