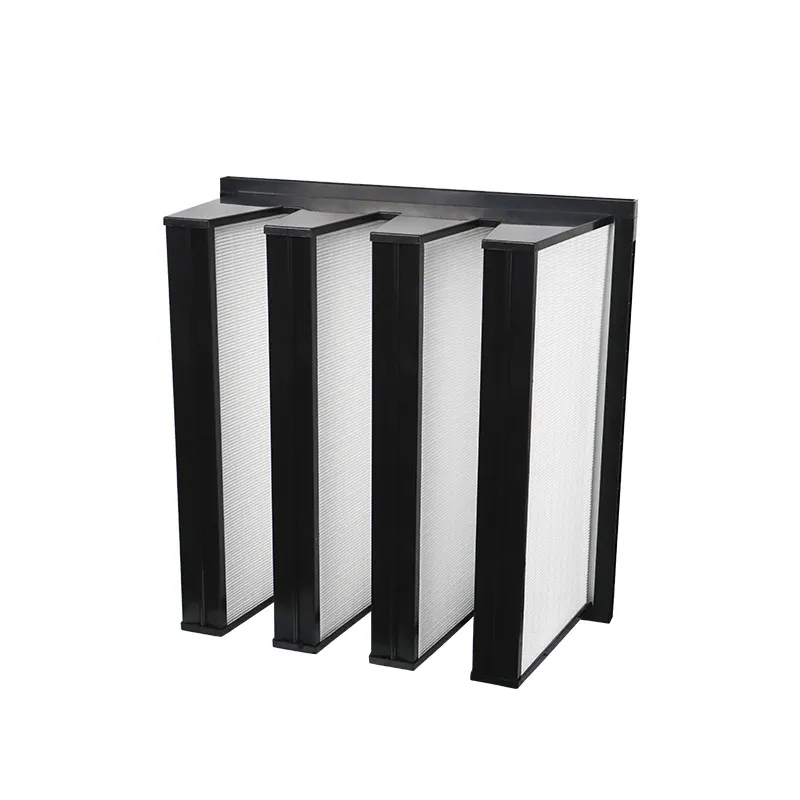

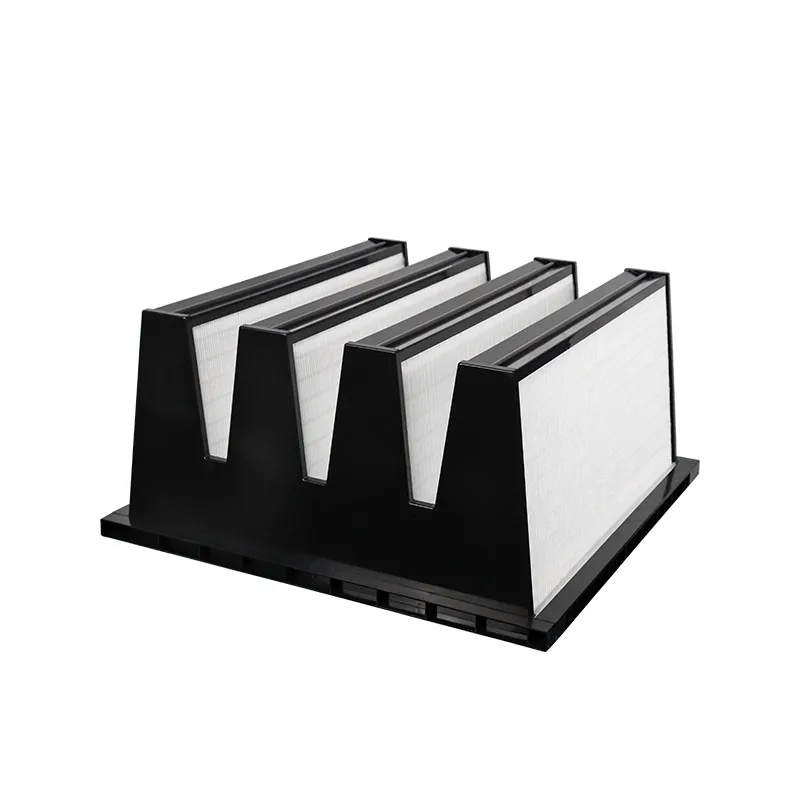

Modular Mini - Pleat High - Efficiency Air Filter

The high - volume mini - pleat high - efficiency air filter, also known as the W - type high - efficiency filter, mainly filters dust particles with a particle size of 0.3μm - 0.5μm. Its outstanding features include a large effective filtration area, low resistance, small footprint, sturdiness and durability, being non - toxic and odorless, and having a high air volume. It can be used as a pre - filter for high - efficiency filters, thereby extending the service life of high - efficiency filters. It is mainly applied in central air - conditioning air supply systems and is widely used in industries such as biopharmaceuticals, hospital operating rooms, food processing, and precision electronics.

Inquire Now Next Product

Material Description

Filter Material	H10 - H12 high - efficiency glass fiber filter paper/PP material; H13 - H14 high - efficiency glass fiber filter paper
Frame Material	Aluminum plate folded frame, galvanized frame, stainless steel frame, plastic - steel frame
Partition Material	Hot - melt adhesive
Sealing Strip	Black polyurethane sealing strip, neoprene rubber
Partition Quantity Specification	Two partitions and four sides, three partitions and six sides, four partitions and eight sides, five partitions and ten sides
Filtration Size	W: 287mm、490mm、595mm、610mm; H: 287mm、490mm、595mm、610mm; D: 295mmStandard width

Standard Specification Parameters

Model	Overall Dimensions (W×H×D)Unit: mm	Number of Partitions	Rated Air Volume(m³/h)	Filtration Area(m²)	Dust Holding Capacity(g)	Initial Resistance(Pa)	Final Resistance(Pa)	Filtration Efficiency
EKVF - 001	287×592×295	2	1200	13.45	800	≤180	400	≥99.9%@0.5μm \ H10 - 14
EKVF - 002	287×490×295	2	1000	11.11	650	≤180	400
EKVF - 003	490×592×295	3	1800	20.12	1200	≤180	400
EKVF - 004	490×490×295	3	1500	16.67	1000	≤180	400
EKVF - 005	490×287×295	3	850	9.67	550	≤180	400
EKVF - 006	592×592×295	3	1800	20.18	1200	≤180	400
EKVF - 007	592×490×295	3	1500	16.67	1000	≤180	400
EKVF - 008	592×287×295	3	870	9.67	580	≤180	400
EKVF - 009	610×610×295	5	3000	34.67	2000	≤180	400
EKVF - 010	610×305×295	5	1500	17.16	1000	≤180	400

Feacture

1.High filtration efficiency, characteristics of low resistance and large air volume

2.Large - air - volume mini - pleat high - efficiency filter with reasonable design, easy to install and disassemble

3.Plastic outer frame or aluminum frame with sturdy structure, no dust generation

4.Using hot - melt adhesive to separate filter materials, durable and capable of bearing large air volume

5.V V - type design, doubling the filtration area and reducing resistance

6.Professional sealing adhesive with good waterproof elasticity, capable of adhering large - particle dust to the surface
