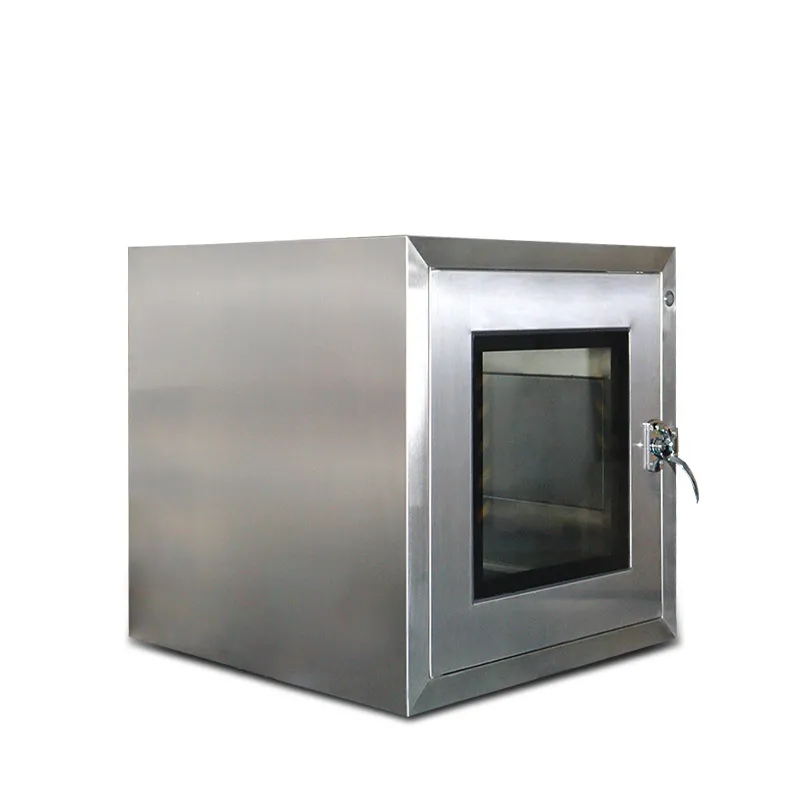

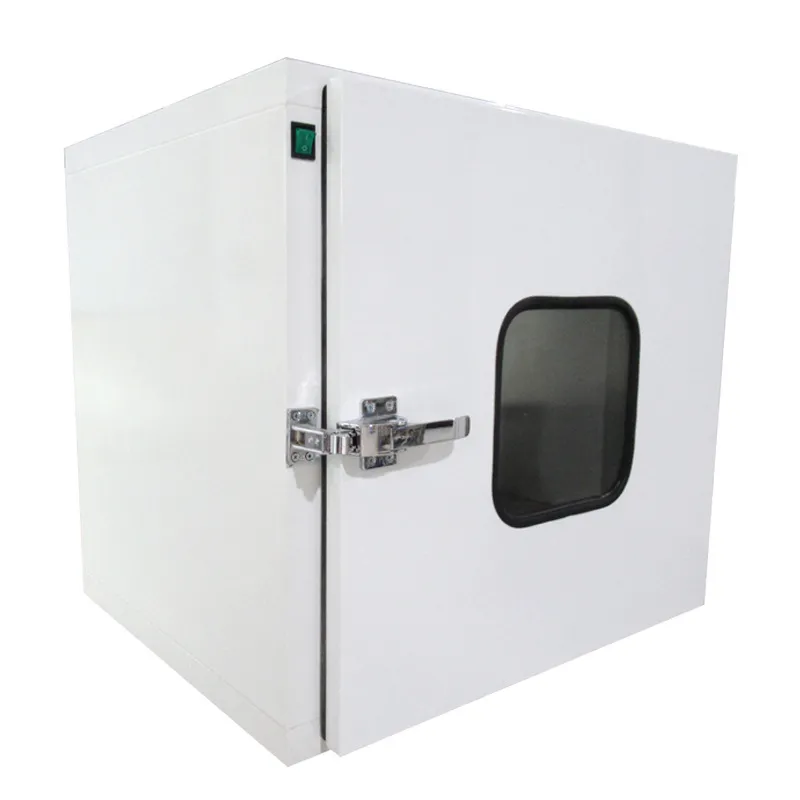

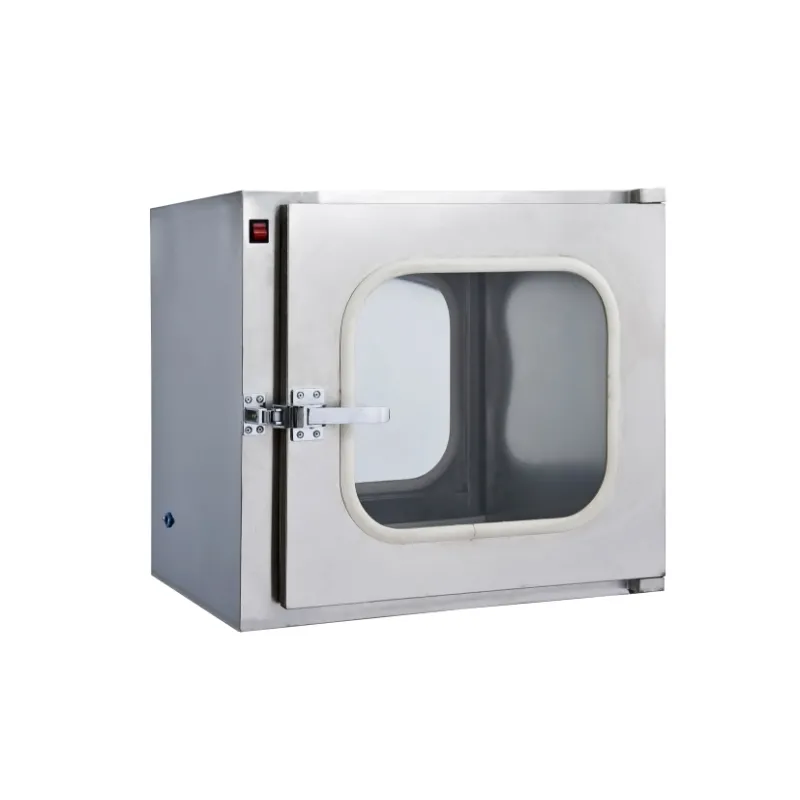

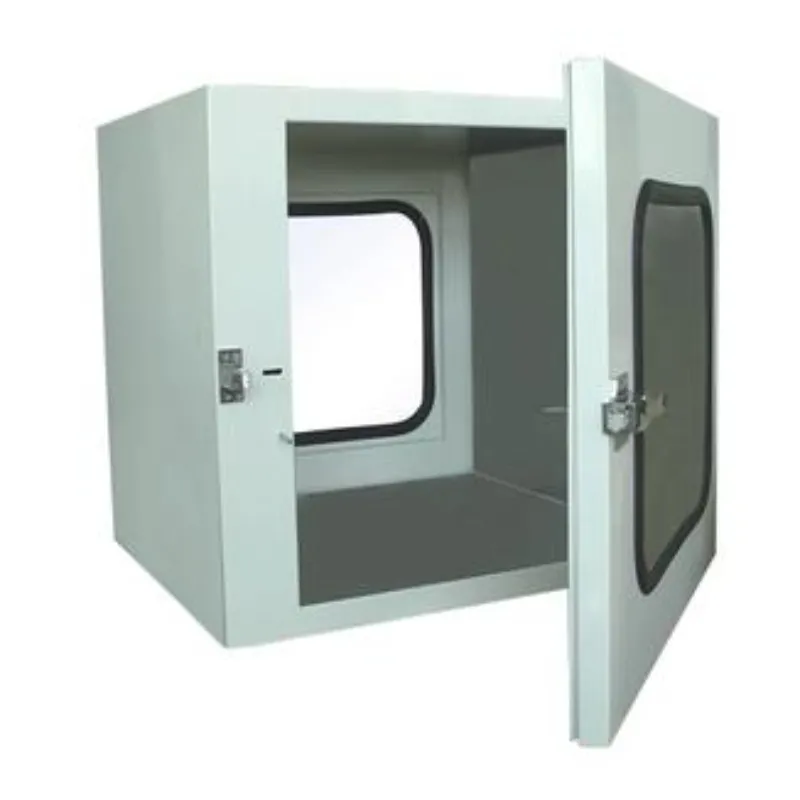

Ordinary Pass-Through Window

Usage: Equipment for transferring items between cleanrooms and non-cleanrooms, reducing door opening frequency and minimizing contamination.

Application Industries: Industries requiring clean environments such as pharmaceuticals, food, and electronics for material transfer.

Inquire Now Next Product

Product Features

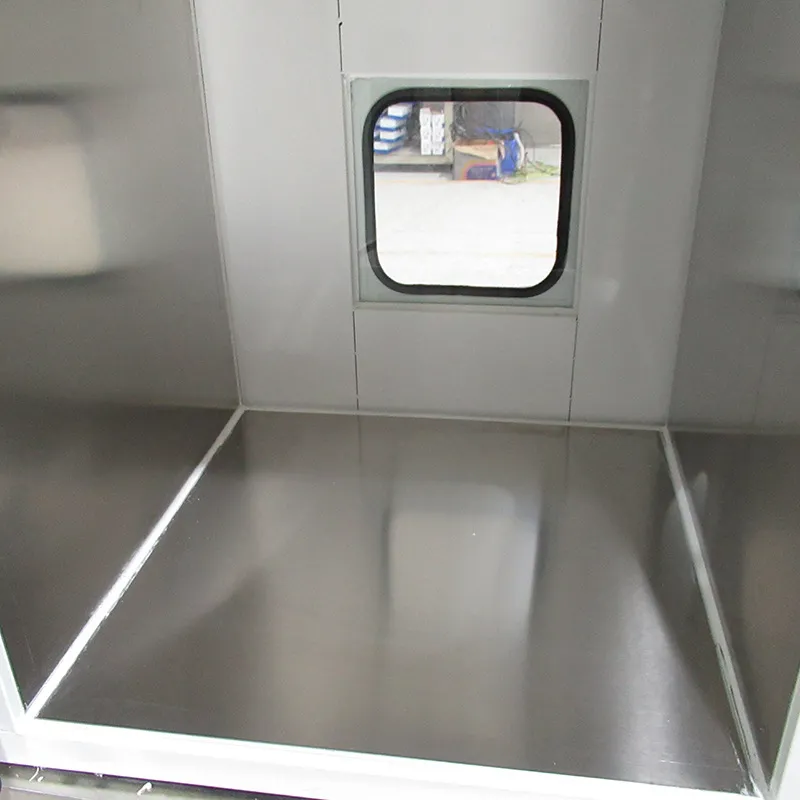

Working area made of sanded stainless steel, smooth and wear-resistant; outer cabinet materials cold-rolled steel, stainless steel SUS201, SUS301.

Equipped with mechanical or electronic interlock device to prevent both doors from opening simultaneously.

Special sealing strips ensure airtightness.

Optional configurations: intercom, UV germicidal lamp.

Standard Dimension Parameters

Product Model	PB-500	PB-600	PB-750
Overall Dimensions (W×D×H mm)	650×560×590	750×660×690	900×810×840
Internal Dimensions (W×D×H mm)	500×500×500	600×600×600	750×750×750
Cabinet Material	Cold plate/Stainless steel
Inner Wall Material	Stainless steel
Plate Thickness	1.0/1.2
Power Supply (Electronic Interlock or Sterilization Lamp)	220V/50HZ

Operation & Management

Management Key Points
Cleanliness Level Management	Managed according to the cleanliness level of the connected higher-level cleanroom (e.g., pass-through window between coding and filling rooms is managed per filling room standards).
Daily Cleaning	After work, cleanroom operators wipe the inner surfaces and turn on the UV sterilization lamp for 30 minutes.
Material In-and-Out Process	1. Separate material and personnel channels; 2. Raw materials are de-packaged/cleaned before entering through the pass-through window; 3. Adhere to "one door open at a time" principle; 4. Semi-finished products are sent to the outer temporary storage via the pass-through window; 5. Contaminated materials and waste are transported out through a dedicated pass-through window.
Cleaning and Disinfection Requirements	After material transfer, promptly clean the site and pass-through window, close both doors, and disinfect.

After-Sales Service

Establish user files and regularly track product quality and usage.

Provide free technical consultation and training to solve usage problems.

1-year warranty for normal use, free replacement of damaged parts (excluding vulnerable parts);For abnormal use or out of warranty, maintenance fees and component costs will be charged as appropriate.
