Product Images

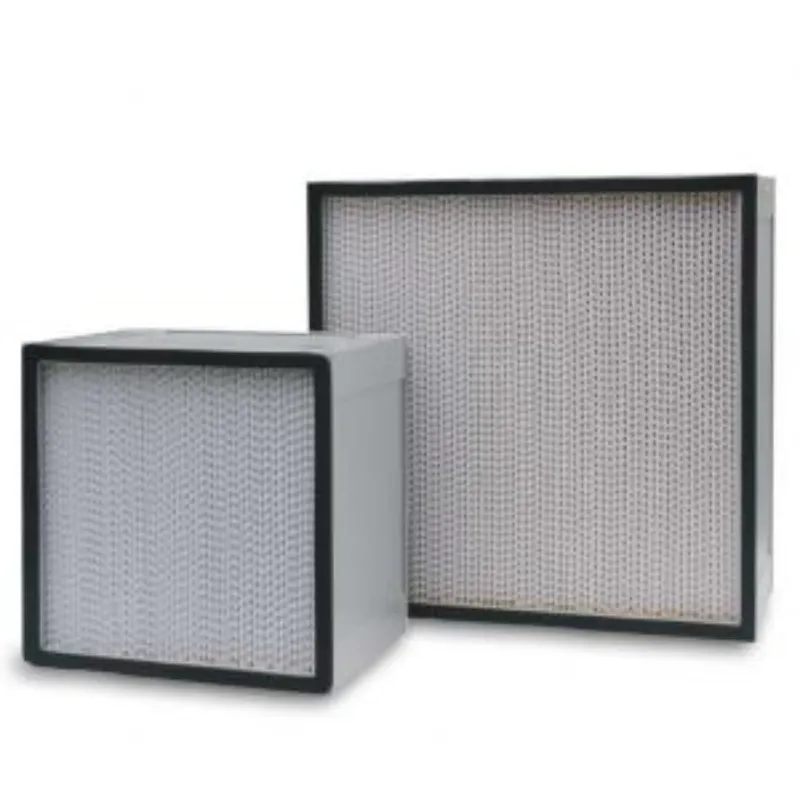

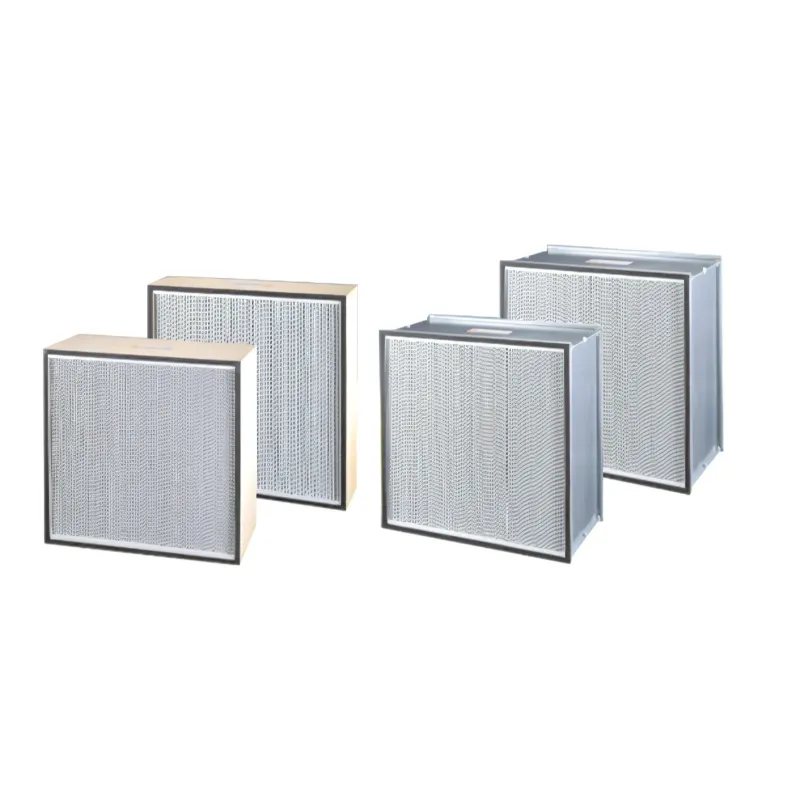

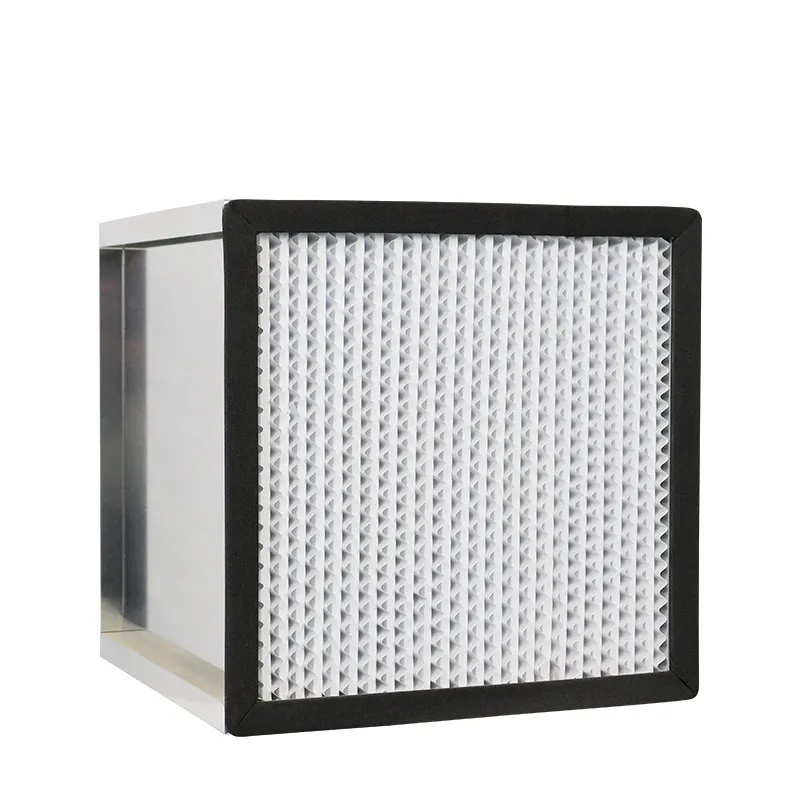

Partitions High - Efficiency Particulate Air (HEPA) Filter

The partitions high - efficiency filter adopts a partition design. The corrugated partitions can precisely maintain the spacing between pleats, maximizing the utilization of filter media with minimal resistance. The filter media is folded 180 degrees on both sides to form wedge - shaped pleated layers. When the filter media is bent, two indentations are created, forming wedge - shaped box - like pleated layers at the end of the partitions. These wedge - shaped box - like pleated layers can prevent damage to the filter media. In corrosive environments, ethylene - coated partitions can be used. Its efficiency in capturing 0.3μm. particles exceeds 99.99%.

Inquire Now Next Product

Material Description

Filter Material	H13 - H14 glass fiber filter paper
Filtration Efficiency	H13: 99.97 - 99.99%@0.3μmH14: 99.995 - 99.999%@0.3μm
Frame Material	Aluminum profile frame, aluminum plate folded frame, galvanized frame, stainless steel frame, wooden frame
Partition Material	Adhesive - coated paper, aluminum foil
Sealing Strip	Black polyurethane sealing strip, neoprene rubber
Filtration Size	Customized according to customer's actual requirements

Standard Specification Parameters

Model	Overall Dimensions (W×H×D)Unit: mm	Rated Air Volume(m³/h)	Filtration Area(m²)	Dust Holding Capacity(g)	Initial Resistance(Pa)	Final Resistance(Pa)	Filtration Efficiency
EKCHF - 001	484×484×120	450	4.3	250	≤180	400	≥99.97%@0.3μm
EKCHF - 002	610×610×120	750	6.9	410	≤180	400
EKCHF - 003	915×610×120	110	10.43	600	≤180	400
EKCHF - 004	484×484×150	600	6.58	350	≤180	400
EKCHF - 005	610×610×150	1000	10.48	550	≤180	400
EKCHF - 006	915×610×150	1500	14.19	850	≤180	400
EKCHF - 007	484×484×220	1000	9.22	550	≤180	400
EKCHF - 008	610×610×220	1500	14.8	850	≤180	400
EKCHF - 009	915×610×220	2500	26.99	1300	≤180	400
EKCHF - 010	1220×610×220	3400	36.12	1950	≤180	400

Feacture

HEPA Service Life	Baike Purification HEPA has a service life of 15 months
Aluminum Alloy Frame	Aluminum alloy frame thickness: 18mm, sturdy and durable
Pleating Technology	German VTR pleating technology, customized for your enterprise
Sealing Strip	EPDM sealing strip, anti - aging, 100% airtight guarantee
Sealing Glue	German Bayer sealing glue, good elasticity, uniform density, no special gas emission
Product Yield Improvement	100% increase in product yield
Air Volume Increase	Air volume increased by 70%
Filter Material	100% Partitions high - efficiency filter uses American HV filter material, filter reaches 100% uniformity
Partition Material	Using aluminum partitions as partition materials, sturdy and durable
Efficiency Range	99.99% - 99.999%H13 - H14
Resistance Reduction	Partitions high - efficiency filter with German VTR technology, resistance reduced by 40%
